Suurmond to develop their own universal glass lab reactor

News

Date: 21 June 17

Short lead times and low cost



For years, Suurmond has supplied reactors for lab and R&D. Completely assembled according client’s specifications and of good Swiss and German quality. The demand from the market for short delivery times and cost-effective solutions has increased in recent years. To meet this demand, Suurmond has developed its own glass reactor system; the suurGLASS labreactor. The reactor has been designed in consultation with users. The first reactors are planned to be delivered in July. We are happy to make special arrangements with universities and colleges.

suurGLASS lab reactor

suurGLASS reactor

The suurGLASS reactor is a universal reactor with a standard configuration. The big advantages are the short lead times and the economic price. The reactor has a modular set-up. Extensions of the configuration are possible at any time.
The DN150 cover contains 5 nozzles, one of which is used for the stirrer. With this concept, 25 configurations are possible.

The reactor is suited for

  • Chemical synthesis
  • Process development
  • Stirring, dissolving, mixing and extracting

Simple exchange of the reactor vessel

An important advantage of the suurGLASS reactor, is that you don’t need to remove the upper section when exchanging vessels.

This means that the motor/dynamic seal/cover remain in place. Our innovative design Quick-Action-Clamp allows you to easily remove the reactor without any help.

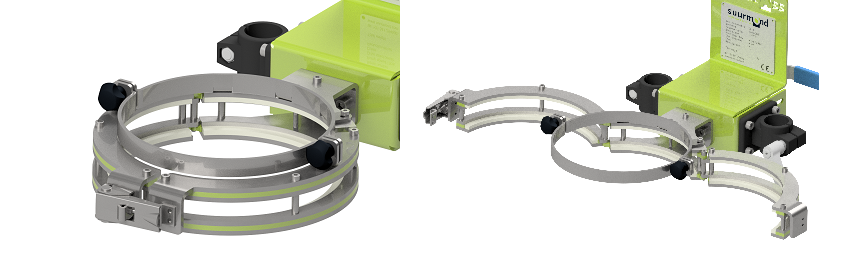

suurGLASS quick action clamp - closed and opened.

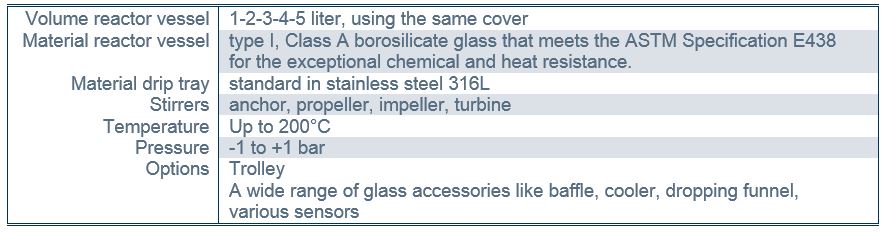

Technical details

Standard configuration

  • Frame stainless steel 316L/304
  • Removable drip tray 316L
  • One jacketed glass vessel; to choose 1-2-3-4-5 liter
  • DN150 cover with 5 nozzles. Fits all available reactors.
  • suurGLASS Quick-Action-Clamp
  • Dynamic seal with PTFE seal
  • Manifold for hoses, including hoses
  • Heidolph Hei-TORQUE motor stirrer
  • Various clamps and support systems
  • PTFE bottom valve
  • 1 stirrer to choose
  • Drain cock for heating oil

The suurGLASS reactor fits in a ‘table-top” fumehood.

Specials

In addition to the standard configuration, specials are also possible. Besides, due to the modular construction, adjustments can be made
at a later stage as well.

Options

A wide range of accessories to complete your reactor to your application, like baffle, cooler, dropping funnel, Pt-100, etc. and various PTFE or stainless steel stirrers.

Teams meeting

Are you interested and do you want more extensive information for you and your colleagues without any obligation? No problem!
Contact us to plan a suitable date and time for an online TEAMS meeting with one of our specialists!





Suurmond supplies solutions to optimize your process and improve the quality of your end-product. Our specialists will be happy to advise you.
